Meiji HDMI400MAC Entry-Level 0.7x-5x Macrozoom System with HD1000-LITE 5MP HDMI Camera

Meiji Techno
(You save $202.40 )
  • 0.7x-5.0x Zoom, 1x objective lens
  • 5.0 MP CMOS, HDMI/USB 2.0 Camera
  • Basic Image Capture/Video and Measurement Software
Current Stock:
Adding to cart… The item has been added

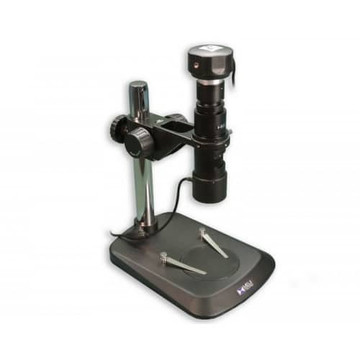

HDMI400MAC is a 0.7x-5x Macrozoom system with 16 LED array illumination powered by USB 2.0 with rheostat, 1x objective 0.4x trinocular eyepiece on a 205mm x 273mm ergonomic slope stand with a 32 mm post on a coarse focus block and a 5 MP HDMI/USB 2.0 camera (HD1000-LITE) USB 2.0 or HDMI compatible, can take still shots and live video 15 fps, W.D. 105mm with basic measurement software.

Wide applications in educational demonstration (such as biological dissections), and industries like textiles, inspecting metal products, chemicals, plastics, electronics manufacturing, machinery manufacturing, pharmaceutical manufacturing, food processing, printing, archeology and many other fields.

Standard LED ring light has more stable light source, safe low voltage, small power dissipation, low calorific value and long operating life. The brightness can be adjusted independently, fit for accurate inspection for high reflectance surface and exterior occasions with lamination limits, displaying more details, which is the best inspection device for industries like electron, five metals (gold, silver, copper, iron and tin) and plastics.


  • HDMI400MAC Macrozoom 0.7x-5.0x, 1x objective lens
  • 5.0 MP CMOS, HDMI/USB 2.0 Camera
  • Basic Image Capture/Video and Measurement Software
  • Coarse Focus Block
  • Ergonomic 32mm pole stand with 205mm x 273mm base

Macro Zoom Len

  • 1x objective lens
  • 105mm (4") working distance


  • 6" Plastic Black and White Stage Plate
  • Plain stage
  • Locked-on spring loaded stage clips (paired)


  • 205mm (8") base
  • 32mm diameter stainless steel post, 11" in height
  • Rack and pinion design, cast aluminum alloy frame


  • Coaxial coarse and 200μm fine adjustments, 2μm precision
  • 50mm Friction adjustment
  • Rack and pinion focusing with slip clutch and tension adjustment
  • "Slip-clutch" system protects against over-focusing


  • LED Ring Light with 16 LED Array with intensity rheostat control with USB 2.0 power
  • Auto voltage sensing power supply, 100-220V


  • Rugged, cast metal frame with rectangle footprint design
  • Black enamel paint finish.
  • Stable footprint design
