Meiji GMZ-41BF/DF, Trinocular Zoom Stereo Gem Microscope, 6.7x - 45x Zoom Magnification

SKU:
MGMZ-41BF/DF
$2,950.35
$3,315.00
(You save $364.65 )
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Need Help?
Our microscope experts are here to help you find the best product and answer all your questions.
Contact Us
Free Service Protection
We've got you covered. Every purchase of a microscope includes free yearly microscope service and inspection.
Learn More
Go Digital
Add a digital camera to your microscope to capture photos and videos of your specimens or samples.
Shop Microscope Cameras

This is Meiji Techno America's new trinocular zoom stereo gem microscope system with a body magnification of 6.7x - 45x with a 76mm focus holder. This system includes a high eyepoint 10x eyepiece with a built-in 0.5x "C" mount. Its zoom ration is 1:6.7 and has an angled eyetube of 45°. This is a professional Gemological microscope system that includes a iris diaphragm, a gem clamp, a halogen brightfield/darkfield transmitted light and a incident oblique fluorescent top light.

System Specifications

System Optical Magnification 6.7-45x
Trinocular Optical Magnification 0.335-2.25x

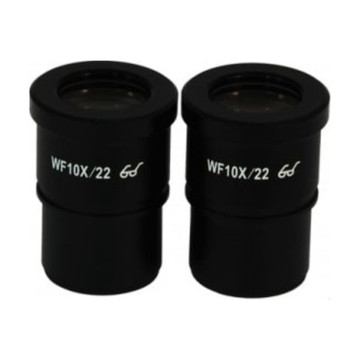

Standard Eyepiece 10x High Eyepoint Eyepiece
Standard Coupler 0.5x
System Field of View 4.9-32.8mm
Expandable System Field of View 1-109.5mm
System Working Distance 100mm
Expandable System Working Distance 26-287mm

Head Specifications

Body Optical System Finite
Body Magnification 6.7-45x
Zoom Range 0.67- 4.5x
Zoom Ratio 1:6.7
Zoom Operation Mode With Two horizontal Knobs
Observation Method Trinocular
Body Mounting Size for Stand 76mm
Nosepiece Adapter Size for Ring Light 54mm
Eyetube Adjustment Mode Compensating
Eyetube Angle 45°
Erect/Inverted Image Erect image
Eyetube Rotatable 360° Rotatable
Interpupillary Adjustment 54-75mm
Eyetube Inner Diameter 30mm
Eyepiece Diopter Adjustable ±5°
Eyepiece Type Standard Eyepiece
Eyepiece Optical magnification 10x
Plan Eyepiece Plan Eyepiece
Eyepiece Size for Eyetube 30m
Eyepiece Field of View 22mm
Eyepoint Type High Eyepoint Eyepiece
Eyepiece Size for Reticle 24mm
Eye Guard Installation Independent Eye Guard
Eye Guard Material Rubber
Eye Guard Mount Size 36mm
Objective Working Distance 100mm
Surface Treatment Spray Paint
Material Metal
Color White
Net Weight 1.46kg (3.22lbs)

Stand Specifications

Holder Adapter Type 76mm Scope Holder
Track Length 250mm
Base Type Illumination Base
Stand Throat Depth 129mm
Base Dimensions 310mm x 250mm x 70mm
Inclination on Vertical Direction 0 - 45°
Microscope Handle Yes
Focus Distance 110mm
Focus Mode Manual
Coarse Focus Distance per Rotation 21mm
Focusing Knob Tightness Adjustable Tightness Adjustable
Illumination Type FH Dual Illuminated Light
Top Illumination Oblique Top Light
Top Illumination Type Fluorescent Light
Bottom Illumination Bright/Dark Field
Bottom Illumination Type Halogen Light
Field Diaphragm Mounting Position Vertical Illuminator
Field Diaphragm Outer Diameter 70mm
Output Power 30W
Input Voltage AC 110-220V 50/60Hz
Output Voltage DC 6V
Power Cord Connector Type USA 3 pins
Power Cable Length 1.8m
Surface Treatment Electroplating Black
Material Metal
Color Black
Net Weight 6.79kg (12.9lbs)
Dimensions 310mm x 250mm x 390mm (12.205" x 9.843" x 15.35")
