Labomed Lx POL Asbestos Microscope with Walton Beckett Reticle - NIOSH 9002, NIOSH 7400, OSHA ID 160

Labomed Lx POL Asbestos Microscope with Walton Beckett Reticle - NIOSH 9002, NIOSH 7400, OSHA ID 160

LABOMED
SKU:
LXPOL-ABS
$4,405.50
Current Stock:
Adding to cart… The item has been added
Accessory Products
Description

Product Specifications

Stand Single mold sturdy stand with anti rust materials. Extended base for better stability
Viewing Bodies Siedentopf Binocular or Trinocular head; 30° inclined; 360° rotatable; IPD 52-75 mm
Eyepiece Focusable Wide Field eyepiece 10x/20mm with foldable eye guard. With factory installed fixed-verticality crosshair in one eyepiece, Walton Beckett Reticle (installed upon request) (accepts 24mm reticle)
Nosepiece Reverse angle quadruple nosepiece (ball bearing type) with click stops, featuring independently centerable objectives

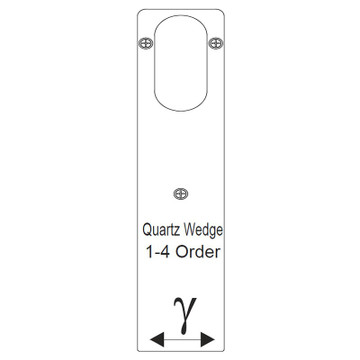

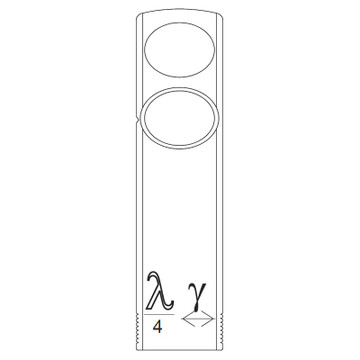

Analyzer Adjustable analyzer with centration screws. Focusable Bertand lens. Slider slots and spare slider holders. Comes equipped with Lamda, 1/4 Lamda, and Quartz Wedge plates.
Polarizer Rotating polarizer with orientation markers at every 90°
Objectives SF series infinity corrected DIN Plan Achromatic objectives: 4x (WD 30.0mm), 10x (WD 7.00mm), 40x (WD 0.65 mm); Optional 100x (WD0.23mm)spring loaded, oil objective
Circular stage 360° rotatable stage, 160mm with one degree increments and spring clips
Condenser 0.9 NA centerable strain free condenser
Focusing Feather touch attrition-free coaxial coarse and fine focus adjustment with auto tension adjustment for longer life and ultra smooth movement. Weighted fine focus.
Illumination LED with intensity control. Koehler field diaphragm.
Electrical Universal input 100V - 240V AC, 50/60Hz. Built in voltage sensing power supply.
Warranty 5-year manufacturer warranty.
Certification UL, CE, ISO 9001:2000 and ISO 13485:2003
