Euromex OX.2253-PLF, Inverted Oxion Inverso Fluorescence Microscope, 2 Positions, Plan Fluarex IOS Objectives

SKU:
OX.2253-PLF
$11,310.00
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Need Help?
Our microscope experts are here to help you find the best product and answer all your questions.
Contact Us
Free Service Protection
We've got you covered. Every purchase of a microscope includes free yearly microscope service and inspection.
Learn More
Go Digital
Add a digital camera to your microscope to capture photos and videos of your specimens or samples.
Shop Microscope Cameras

The inverted Oxion Inverso biological microscopes of Euromex are available for bright field, phase contrast and fluorescence applications. Specific objectives compensate the 1.2 mm thick bottoms of the petri dishes or culture dishes

The Oxion Inverso inverted microscopes (Life Science) are useful for observation of living organisms and tissues cultures in cell culture dishes and flasks.

Features:

  • Life Science applications
  • Observation of tissue cultures, living cells
  • Long working distance IOS plan fluarex objectives
  • Revolving quintuple nosepiece
  • 5W LED transmitted illumination
  • 100W mercury vapor lamp for fluorescence
  • Also available with 4 position filter block

Microscope Specifications

Viewing Head Trinocular 45° inclined tubes with extended low and high positions for eyepieces, 100-0% and 80-20% positions, diopter adjustment on left eyepiece, 54 to 75mm Interpupillary distance
Eyepieces Pair of DIN HWF plan 10x/22mm eyepieces
Nosepiece Revolving quintuple nosepiece on ball-bearings

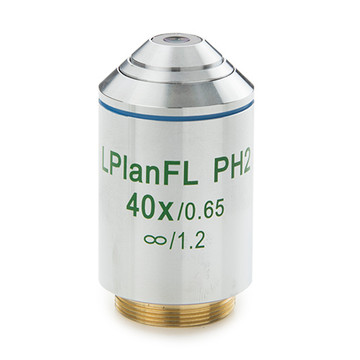

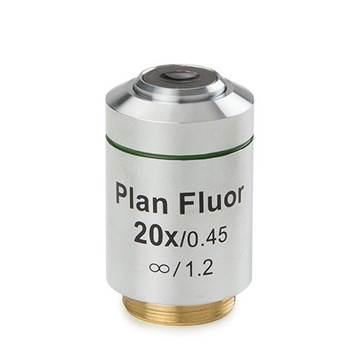

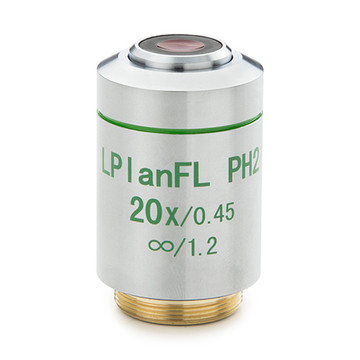

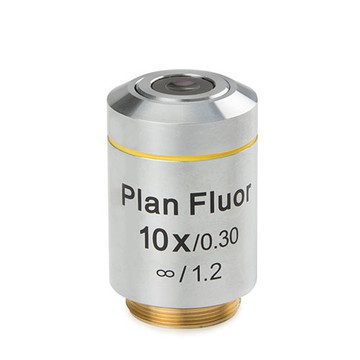

Objectives Infinity color corrected long working distance plan fluarex 10x/0.30, 20x/0.45, 40x/0.65 IOS objectives
All objectives corrected for 1.2 mm thickness.
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput.
Condenser N.A. 0.30 condenser with iris diaphragm. Working distance 72 mm
Stage Stage 250 x 230mm equipped with a coaxial mechanical 120 x 78mm X-Y stage, metallic insert for Ø 35 mm cell culture dish, 76 x 26mm slide holder, glass insert with hole.
Fluorescence Filters 2 Position filter block
Blue excitation 465-495 nm: FITC, EX465-495 (BP) DM505 (LP) EM515-558 (BP)
Green excitation 520-600 nm: Texas Red / mCherry / Alexa Fluor 594, EX520-600 (BP) DM600 (LP) EM605-665 (BP)
Illumination Transmitted 5W LED Intensity adjustable with internal 100-240V power supply. Fuse holder 3.15A / 250V.
Reflected 100 W HBO mercury vapor light source with external 100-240 V power supply, fuse holder 3.15 A / 250 V, UV protection shield.
Focusing Coaxial 25 mm coarse and fine adjustments, 2 μm precision and with friction adjustment
Supplied with Power cord, dust cover, user manual and transport case
