Applications
The Euromex MZ.4500 MacroZoom is designed for professional optical inspection and precision work in various technical and industrial environments, including:
- Industrial visual inspection
- Precision repairs and component servicing
- Tooling engineering and manufacturing
- Electronic component inspection
- Quality control and production inspection
- Small-part examination and analysis
- Technical workshops and engineering laboratories

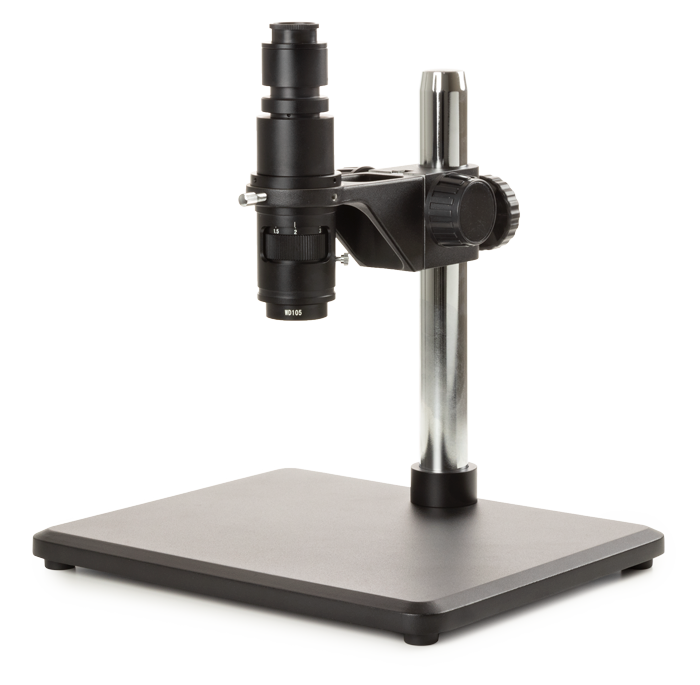

Euromex MZ.4500 MacroZoom Microscope
The Euromex MZ.4500 MacroZoom is a high-end optical inspection system designed for detailed visual examination, repairs, and precision tooling applications. It features a semi-apochromatic optical zoom objective with a magnification range of 0.7x to 4.5x, providing flexible viewing for different inspection requirements.
With a working distance of 105 mm, the MZ.4500 provides convenient access to the specimen during repairs, component handling, and visual inspections. Its C-mount camera connection allows users to integrate compatible Euromex digital cameras and connect the imaging system to an HD display or computer screen.
The microscope is mounted on a sturdy metal stand with a 230 mm pillar and a heavy 320 x 260 mm base. Its stable construction supports the addition of compatible illumination systems and digital camera accessories. The MZ.4500 is supplied without a camera or illumination, allowing users to configure the system according to their inspection needs.
Key Features
- High-end optical MacroZoom microscope
- 0.7x to 4.5x semi-apochromatic zoom objective
- 105 mm working distance
- C-mount camera connection with 0.4x objective
- Compatible with Euromex digital C-mount cameras
- Suitable for use with HD displays and computer screens
- Sturdy metal stand with 230 mm pillar
- Heavy 320 x 260 mm metal base for enhanced stability
- Supports the addition of compatible illumination systems
- Supplied with a dust cover
- Camera and illumination not included
Product Specifications
| Specification | Details |
|---|---|
| Brand | Euromex |
| Series | MacroZoom MZ.4500 |
| Model | MZ.4500 |
| Microscope Type | Optical MacroZoom Microscope |
| Optical Magnification | 0.7x to 4.5x |
| Objective Type | Semi-Apochromatic Zoom Objective |
| Zoom Settings | 1x, 1.5x, 2x, 3x, 4.5x |
| Working Distance | 105 mm |
| Camera Mounting | C-Mount |
| Camera Adapter | 0.4x Objective |
| Camera Compatibility | Compatible Digital C-Mount Cameras |
| Display Compatibility | HD Displays and Computer Screens (via compatible camera) |
| Illumination | Not Included |
| Stand Type | Metal Pillar Stand |
| Pillar Height | 230 mm |
| Pillar Diameter | 32 mm |
| Holder Diameter | 39/50 mm |
| Base Dimensions | 320 x 260 x 16/25 mm |
| Overall Dimensions | 320 x 313 x 285 mm (W x H x D) |
- Weight:
- 6.75 LBS
- Width:
- 12.60 (in)
- Height:
- 12.32 (in)
- Depth:
- 11.22 (in)
