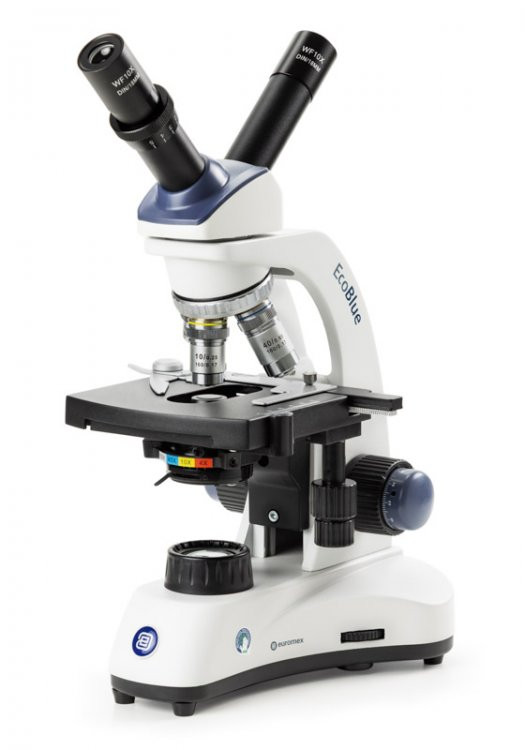

Euromex EC.1051 EcoBlue monocular microscope with achromatic 4/10/S40x objectives, 1W LED cordless illumination and X-Y mechanical stage
Euromex
$461.50
Write a Review
Euromex
Euromex EC.1051 EcoBlue monocular microscope with achromatic 4/10/S40x objectives, 1W LED cordless illumination and X-Y mechanical stage
Euromex EcoBlue EC.1051: EcoBlue monocular microscope with achromatic 4/10/S40x objectives, 1W LED cordless illumination and X-Y mechanical stage.
The outstanding optical performance of the ergonomic Euromex BlueLine microscopes enables long productive working sessions for students for beginner, intermediate, and advanced science teaching classes. Microscopes for education need to be easy-to use and student-friendly, which means able to withstand extensive use and rough handling The modern microscopes of the EcoBlue series are especially developed for educational purposes with primary focus on ergonomic and excellent price/quality ratio. These microscopes are supplied with secured eyepieces, achromatic objectives and an adjustable rack stop to prevent damage to sample and objectives
Model Details
| Article Number | EC.1051 |
| Series | Euromex EcoBlue |
| Model Group | EcoBlue standard |
| Model Configuration | Monocular, 4/10/40x objectives, Mechanical X-Y Stage, Dual LED |
EcoBlue Series Specifications
| EYEPIECE(S) | Wide field WF 10x/18 mm eyepiece with pointer; The eyepieces of the binocular and trinocular models are supplied without pointer |
| HEAD | Monocular models with 45° inclined tubes; Binocular and trinocular models have 30° inclined tubes; The interpupillary distance is adjustable between 48 and 75 mm; All binocular and trinocular models have a diopter ± 5 diopter adjustment on left tube; All heads are 360° rotatable; Models with an integrated USB-2 camera are supplied with a 5.0 MP 1/2” CMOS sensor with 2560 x 1920 pixels resolution; The EcoBlue can also be supplied with a discussion head |
| NOSEPIECE | Reversed revolving nosepiece for four objectives on ball bearings; Models for polarization are supplied with swing-out analyzer |
| OBJECTIVES - 45 MM PARFOCAL | Achromatic 4x/0.10, 10x/0.25, S40x/0.65 and S100x/1.25 objectives; The S40x, S60x and S100x oil immersion objectives are spring loaded; The DLED-S models for polarization are equipped with semi-plan objectives |
| FOCUSING | Coaxial coarse and fine adjustments, 200 graduations, 12.5 µm per graduation, 2.5 mm per rotation, total travel approximately 15 mm; Supplied with an adjustable rack stop to prevent damage to sample and objective |
| STAGES | Plain 123 x 119 mm stage with two non-removable object clamps (optional EC.9500 attachable 51 x 26 mm X-Y mechanical stage available); Plain 123 x 128 mm stage with integrated 70 x 27 mm X-Y mechanical stage; The models for polarization are supplied with 129 mm circular stage, 360° rotatable and 2 object clamps |
| CONDENSER | Height adjustable color-coded Abbe condenser N.A. 1.25 with iris diaphragm and filter holder; The models for polarization have a rack & pinion adjustment, all other models carry a helicoidal adjustment |
| DUAL ILLUMINATION SYSTEM | 1 W white (Neo)LED(™): 6000 - 6500 K, ideal for standard observations with crisp, cool lighting; 1 W halogen colored (Neo)LED(™): 3000 - 3200 K, enhances contrast for specific applications such as transparent objects |
| PACKAGING | Supplied with three rechargeable AA batteries, a 100-240 Vac / 5 Vdc USB-C multiplug adapter, white filter, dust cover, spare fuse, user manual. A 5 ml immersion oil for models with an S100x oil objective; All packed in a polystyrene box |
Dimensions & Weight
| Dimensions (W x H x D) | 170 x 355 x 220 mm |
| Weight | 2.48 kg |
Specifications per Euromex. Specifications are subject to change without notice.
