Applications
- Collaborative laboratory observation
- Educational demonstrations and microscope training
- Biological specimen examination
- Scientific research and laboratory studies
- Industrial inspection and quality control
- Material examination and analysis
- Simultaneous specimen observation by multiple users

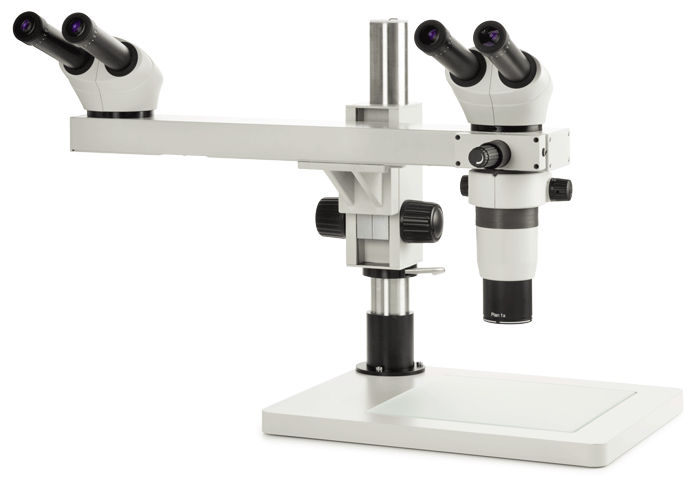

Euromex DZ.1804 Dual-Head Stereo Zoom Microscope
The Euromex DZ.1804 is a professional multihead stereo zoom microscope designed for simultaneous observation by two users. It features two independent binocular viewing heads, allowing multiple observers to examine the same specimen during laboratory instruction, research, and collaborative inspection.
The microscope incorporates a 1:8 zoom system with a 1x Plan Apochromatic common main objective. Combined with EWF 10x/22 mm wide-field eyepieces, it provides total magnification from 8x to 64x. The optical system delivers detailed stereo imaging with a 78 mm working distance.
Its large ergonomic multihead stand features a spacious working platform and glass stage plate. The microscope also incorporates a built-in LED pointer to assist with directing attention to specific areas of the specimen.
This configuration is supplied without built-in incident or transmitted illumination, making it suitable for applications where external lighting arrangements are preferred.
Key Features
- Dual binocular stereo microscope configuration
- Two fixed binocular viewing heads
- EWF 10x/22 mm wide-field eyepieces
- 1:8 stereo zoom system
- 1x Plan Apochromatic common main objective
- Total magnification range of 8x–64x
- 78 mm working distance
- Large ergonomic multihead stand
- Large glass stage plate
- Built-in LED pointer
- Designed for simultaneous observation by two users
- Supplied without built-in illumination
Product Specifications
| Brand | Euromex |
| Series | DZ |
| Model | DZ.1804 |
| Microscope Type | Stereo Zoom Microscope |
| Head Configuration | Dual Binocular |
| Number of Viewing Heads | 2 |
| Head Inclination | Fixed 20 Degrees |
| Eyepieces | EWF 10x/22 mm |
| Interpupillary Distance | 55–75 mm |
| Diopter Adjustment | ±5 Diopters |
| Zoom Ratio | 1:8 |
| Zoom Range | 0.8x–6.4x |
| Common Main Objective | 1x Plan Apochromatic |
| Total Magnification | 8x–64x |
| Field of View | 27.5 mm–3.4 mm |
| Working Distance | 78 mm |
| Stand Type | Large Ergonomic Multihead Stand |
| Stand Dimensions | 350 x 420 mm |
| Glass Stage Plate | 250 x 250 mm |
| Total Arm Length | 750 mm |
| Pointer | Built-in LED Pointer |
| Illumination | Not Included |
- Weight:
- 52.00 LBS
- Width:
- 18.00 (in)
- Height:
- 11.00 (in)
- Depth:
- 16.00 (in)
