Euromex DX.1153-PLPHi, Delphi-X Observer Phase Contrast MicroscopeEuromex
- Trinocular head
- SWF 10x/25mm eyepieces
- Plan Phase EIS 10x, 20x, S40x & S100 (oil) objectives
- 3W NeoLED™ illumination
The outstanding optical performance of the Delphi-X Observer™ with 25mm fields of view and high numerical aperture of the Plan 60mm parafocal EIS objectives enables perfect observations and color rendering at high resolving power. This is the perfect microscope for anatomo-pathologists
- Trinocular or Ergonomic tilting trinocular head
- Sextuple reversed nosepiece
- Super Wide Field (SWF) 10x/25mm eyepieces, ∅ 30mm tubes
- Enhanced infinity corrected EIS optical system
- 60mm parafocal Plan EIS, Plan Semi-Apochromatic EIS or Plan Phase EIS objectives
- M25mm objective thread mounting
- 3W NeoLED™ illumination
- Also available with 100W halogen illumination
|Viewing Head||Siedentopf trinocular with 30° inclined tubes, 47-78mm Interpupillary distance, optical path selector (100:0 / 80:20 / 0:100), Diopter adjustment on both eyepieces.|
|Eyepieces||Super Wide Field (SWF) 10x/25mm, ∅ 30mm tubes.|
|Nosepiece||Revolving sextuple reversed nosepiece on ball-bearings with M25 objectives mounting threads.|
|Objectives||Plan Phase EIS 10x/0.25, 20x/0.40, s40x/0.65 and s100x/1.25 (oil immersion) infinity corrected EIS objectives.
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput.

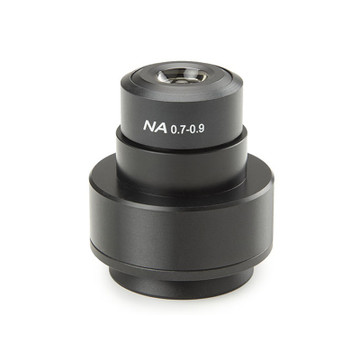

|Condenser||Height adjustable N.A. 1.25 Zernike phase contrast condenser with phase annuli for 10/20/40x and S100x-oil objectives. To be used with the phase contrast objectives.|
|Stage||190 x 152mm stage with 78 x 32mm integrated right-handed mechanical stage, comes with robust and scratch-resistant Gorilla glass.|
|Focusing||Coaxial coarse and fine adjustments, 100 graduations, 1μm per graduation, 100μm per rotation, total travel range is approximately 35mm, adjustable rack stop to prevent damage to sample and objectives, friction control.|
|Illumination||Diascopic intensity adjustable 3W NeoLED™ Köhler illumination with internal 100-240V power supply.|
|Filters||The diascopic NeoLED™ illumination comes with one neutral density filter.|
|Supplied with||Power cord, dust cover, a spare fuse, user manual and 5 ml immersion oil.|
|Warranty||Ten (10) Years mechanical and optical parts
Two (2) Years electrical
*** Non-refundable ***
