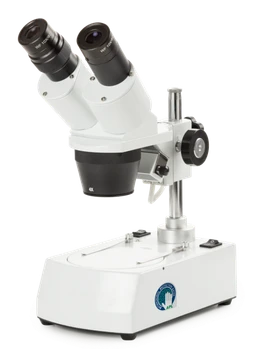

Euromex AP-8 LED Binocular Stereo Microscope – 20x/40x Magnification
EuromexApplications
- Educational institutions and classroom microscopy demonstrations.
- Student training and practical stereo microscopy instruction.
- Routine specimen observation in educational laboratories.
- Examination of specimens using incident LED illumination.
- Observation of transparent specimens using transmitted LED illumination.
Euromex AP-8 LED Binocular Stereo Microscope, 2x/4x Revolving Objectives, 20x/40x Magnification, Rechargeable Incident & Transmitted LED Illumination
The Euromex AP-8 LED Binocular Stereo Microscope is a compact and robust optical instrument designed specifically for educational purposes, classroom demonstrations, and routine specimen examination. It features a binocular viewing head with 45° inclined tubes for comfortable two-eye observation. The microscope includes secured wide-field WF10x/20 mm eyepieces with eyecups, along with diopter adjustment on one eyepiece tube and an adjustable interpupillary distance to accommodate different users.
The optical system incorporates revolving 2x/4x objectives, providing two selectable total magnifications of 20x and 40x. This configuration allows users to conveniently switch between magnification levels for examining specimens at different levels of detail. The microscope offers fields of view of 10 mm at 20x magnification and 5 mm at 40x magnification, with a working distance of 52 mm. Its optics are treated with anti-fungus protection and anti-reflection coatings to support efficient light transmission.
The microscope is constructed with a sturdy pillar stand featuring rack-and-pinion focusing and a slip-clutch mechanism. Its 40 mm coarse focusing adjustment provides controlled focusing during specimen examination. The supplied accessories include a black-and-white stage plate, a transparent glass stage plate, and two object clamps, providing practical support for different specimen observation requirements.
For versatile specimen illumination, the Euromex AP-8 LED incorporates both incident and transmitted LED illumination. Incident illumination lights specimens from above, while transmitted illumination provides light from underneath. Both illumination systems operate using three rechargeable AA batteries, providing up to 35 hours of cordless operation. An external mains adapter/charger is supplied for powering and recharging the microscope.
Combining comfortable binocular viewing, selectable revolving objectives, dual LED illumination, and rechargeable cordless operation, the Euromex AP-8 LED provides a practical stereo microscopy solution for educational institutions, student training, and routine specimen observation.
Key Features
- Compact and robust stereo microscope designed for educational applications.
- Binocular viewing head with 45° inclined tubes.
- Secured WF10x/20 mm wide-field eyepieces supplied with eyecups.
- Diopter adjustment on one eyepiece tube.
- Adjustable interpupillary distance from 55 to 75 mm.
- Revolving 2x/4x objectives for convenient magnification selection.
- Two total magnification options: 20x and 40x.
- Field of view of 10 mm at 20x and 5 mm at 40x magnification.
- Working distance of 52 mm.
- Anti-fungus treated and anti-reflection coated optics.
- Sturdy pillar stand with rack-and-pinion focusing and slip-clutch mechanism.
- 40 mm coarse focusing adjustment.
- Incident and transmitted LED illumination.
- Three rechargeable AA batteries for cordless operation.
- Up to 35 hours of cordless operating time.
- External mains adapter/charger included.
- Supplied with black-and-white and transparent glass stage plates and two object clamps.
Product Specifications
| Brand | Euromex |
| Product Series | AP Series |
| Microscope Type | Stereo Microscope |
| Viewing Head | Binocular with 45° Inclined Tubes |
| Eyepieces | Pair of Secured WF10x/20 mm Wide-Field Eyepieces with Eyecups |
| Diopter Adjustment | One Eyepiece Tube |
| Interpupillary Distance | 55–75 mm |
| Objective Configuration | Revolving 2x/4x Objectives |
| Total Magnification | 20x / 40x |
| Field of View | 10 mm at 20x; 5 mm at 40x |
| Working Distance | 52 mm |
| Optical Treatment | Anti-Fungus Treated and Anti-Reflection Coated |
| Stand Type | Pillar Stand |
| Focusing Mechanism | Rack-and-Pinion Focusing with Slip-Clutch Mechanism |
| Coarse Focusing Adjustment | 40 mm |
| Illumination Type | Incident and Transmitted LED Illumination |
| Power Source | Three Rechargeable AA Batteries |
| Cordless Operating Time | Up to 35 Hours |
| Power Supply | External Mains Adapter/Charger |
| Stage Plates | Black-and-White Stage Plate and Transparent Glass Stage Plate |
| Specimen Holders | Two Object Clamps |
| Included Accessories | Power Adapter, Dust Cover, Spare Fuse, and User Manual |
- Weight:
- 5.51 LBS
- Width:
- 4.72 (in)
- Height:
- 11.26 (in)
- Depth:
- 6.69 (in)
