ACCU-SCOPE EXC-360 Clinical Microscope
$2,142.00
ACCU-SCOPE EXC-360 MOHS Microscope
ACCU-SCOPE
$2,368.00
Write a Review
ACCU-SCOPE

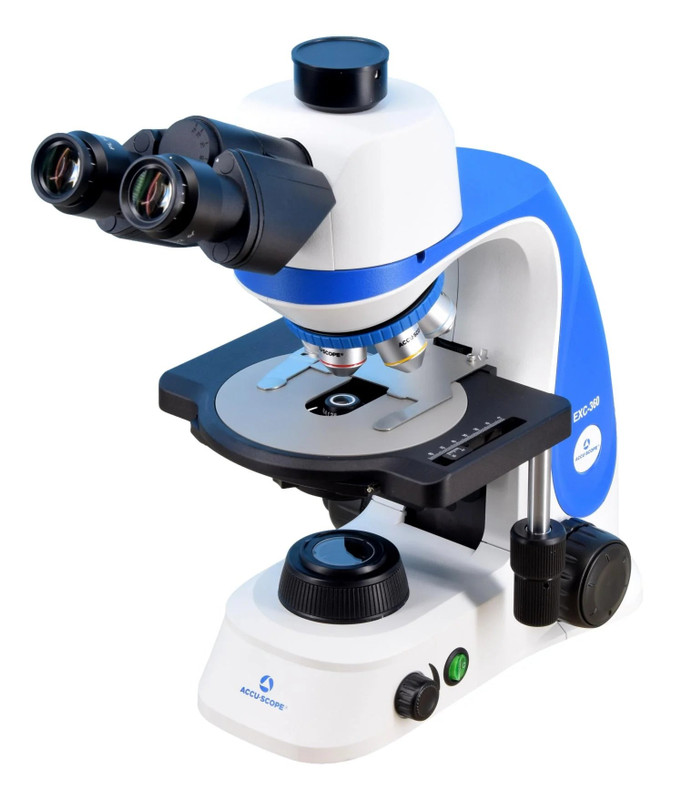

ACCU-SCOPE EXC-360 MOHS Microscope
ACCU-SCOPE EXC-360 MOHS Microscope (EXC-360-PATH, EXC-360-PATH-BE).
The ACCU-SCOPE EXC-360 combines a sturdy build with a large ceramic-coated stage that resists wear in high-demand environments and a quick-load slide holder for seamless slide changes. The 10x eyepieces offer a 22mm field of view, and the ultra-bright 3-watt LED illumination supports high-resolution imaging. This configuration is set up for dermatology / MOHS applications, and the condenser includes a diffusion slider for use with the 2x objective.
Specifications
| Catalog Numbers | EXC-360-PATH, EXC-360-PATH-BE |
| Brand | ACCU-SCOPE |
| Objectives | Infinity Plan Achromat 2x, 4x, 10x, 20x |
| Condenser | N.A. 1.25 with aperture diaphragm; with diffusion slider |
| Eyepieces | WF10x/22mm focusing eyepieces with eyeguards; accept 26.5mm reticle |
| Nosepiece | Reversed quintuple |
| Stage | Double-layer mechanical stage with ceramic coating; 0.1mm precision (X-axis); 78mm x 51mm movement range; quick-load single slide holder |
| Focusing | Coaxial focusing with adjustable tension control and upper limit stop; all metal gears, brass fine focus |
| Illumination | 3W LED with variable intensity control; rated for over 25,000 hours; internal universal power supply 110-240v |
| Warranty | 5 Year Mechanical & Electrical |
Available Configurations
| Head Type | Catalog # | Configuration Details |
| Trinocular | EXC-360-PATH | Trinocular with Plan Achromat 2x, 4x, 10x & 20x Objectives with Diffusing Filter Slider; Trinocular viewing head, inclined 30°, rotatable 360°; fixed light path split 50:50; PL10x/22mm focusable eyepieces with eye cushions; accepts 24mm reticle; Double layer, rackless mechanical stage with ceramic insert, low position right hand controls; N.A. 1.25 Abbe Condenser with iris diaphragm; slot for phase contrast or darkfield sliders; Coaxial coarse and fine focus controls; 3 watt Variable LED with field iris; 5v USB charging port for personal mobile device; Dust cover, power cord, immersion oil and instruction manual |
| Ergo Tilting Binocular | EXC-360-PATH-BE | Ergo Binocular with Plan Achromat 2x, 4x, 10x & 20x Objectives with Diffusing Filter Slider; Ergo tilting binocular viewing head (0° to 35°) |
Specifications per ACCU-SCOPE. Specifications are subject to change without notice.
- Weight:
- 24.00 LBS
- Width:
- 16.00 (in)
- Height:
- 22.00 (in)
- Depth:
- 14.00 (in)
