ACCU-CAM WiFi 4K 8MP Microscopy Camera with WiFi and USB 3.0

ACCU-CAM WiFi 4K 8MP Microscopy Camera with WiFi and USB 3.0

ACCU-SCOPE
SKU:
ACC-AU-AC-WIFI4K-0926
$549.00
  • 8 MP SONY IMX678 CMOS sensor with 4K 3840 x 2160 resolution.
  • Supports up to 30fps via WiFi 802.11ac or USB 3.0.
  • Compatible with Windows, MacOS, iOS, and Android devices.
  • Automatic and manual exposure and white balance controls.
  • AccuView software supports measurement, annotation, focus stacking, and stitching.
Current Stock:
Adding to cart… The item has been added
Accessory Products
Description

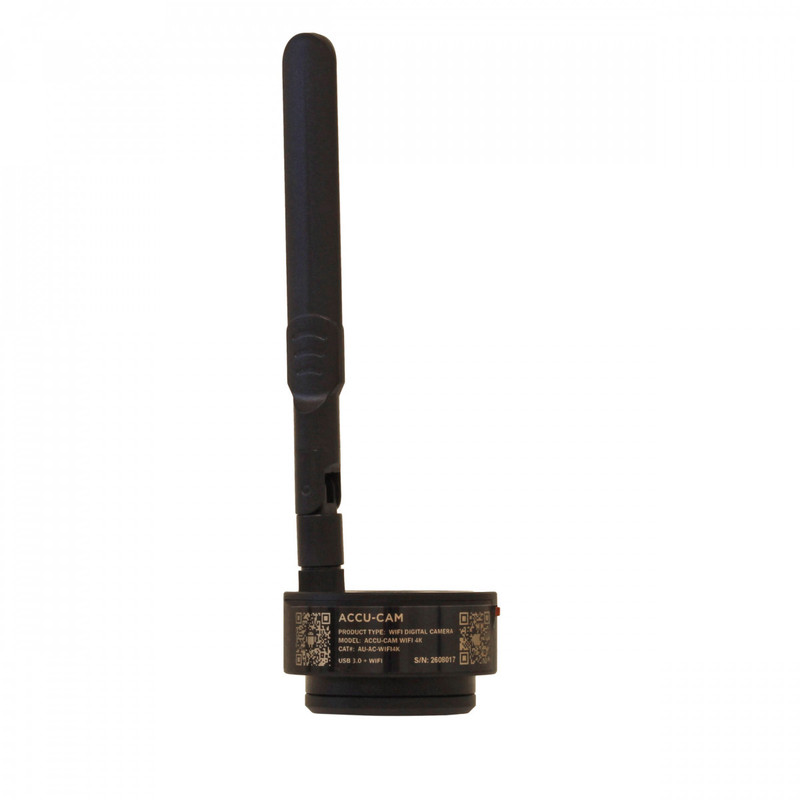

The ACCU-CAM WiFi 4K Microscopy Camera (AU-AC-WIFI4K) features an 8 MP SONY IMX678 Color CMOS sensor with 4K resolution and WiFi 802.11ac connectivity. It supports up to 30fps via WiFi or USB 3.0 and is compatible with Windows, MacOS, iOS, and Android devices. The camera also includes advanced AccuView software features for image measurement, annotation, calibration, focus stacking, and image stitching.

Camera Specifications

Specification Details
Model AU-AC-WIFI4K
Sensor SONY IMX678 Color CMOS
Sensor Size 1/1.8", 7.68mm (H) x 4.32mm (V), Diagonal 8.86mm
Resolution 3840 x 2160
Pixel Size 2.0µm x 2.0µm
Frame Rate 30fps maximum via WiFi or USB 3.0
Image Format JPG, TIF, PNG
Video Format MJPEG (H.264 codec)
Exposure Mode Automatic or Manual
White Balance Automatic, Whole Area, or Manual Color Temperature Adjustment
ADC 12-bit
Data Transmission Automatic Switching Between WiFi and USB Mode
Power - WiFi Mode USB-C DC 5V/2A Adapter
Power - USB Mode Power Through USB-C From PC
Lens Mount Standard C-Mount; 0.5x Camera Adapter Recommended

Connectivity & Compatibility

Specification Details
Wireless Standard WiFi 802.11ac
WiFi Connections Up to 3 Simultaneous Connections; 1 Connection Recommended
PC & Mac Software AccuView Imaging Software for Windows and MacOS
Windows Compatibility Windows 7, 8, 10, 11; 64-bit Recommended
MacOS Compatibility Mac OSX 10.4 and Higher
iOS Compatibility iOS 11.0 or Higher; Supports 2.4G WiFi 11b/g/n
Android Compatibility Android 5.1 or Higher; Dual-Core 1.7GHz or Higher; 3GB RAM or More; WiFi 802.11ac
Plugins TWAIN and DirectShow
Minimum System Requirements Intel i5 or Better, Quad-Core or Better, 4GB RAM or More, USB 2.0 High-Speed Port

AccuView Software Features

Feature Details
User Interface Intuitive User Interface
Image Processing Powerful Image Processing Tools
Measurement Calibrate, Measure, and Annotate Images
Image Stitching Supported; Requires Mechanical Stage
Extended Depth of Focus Focus Stacking
Software Platforms Windows, MacOS, iOS, and Android
AccuView LITE Available for Streamlined Performance
