Scienscope MZ7A-PK5D-4KSC-E2D, MZ7A Micro Zoom System on Dual Arm Boom Stand with 4K HDMI SmartCam, LED Ring Light & 26" 4k LED Monitor

Scienscope MZ7A-PK5D-4KSC-E2D, MZ7A Micro Zoom System on Dual Arm Boom Stand with 4K HDMI SmartCam, LED Ring Light & 26" 4k LED Monitor

Scienscope
SKU:
SCSMZ7A-PK5D-4KSC-E2D
$3,752.77
$4,079.10
(You save $326.33 )
Current Stock:
Adding to cart… The item has been added

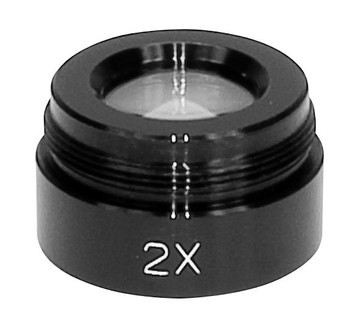

Accessory Products
Description

The Scienscope MZ7 Micro Zoom series can provide a high magnification image without chromatic aberration and distortion. Detented zoom for repeatable magnification settings and built-in internal focus module are perfect for FOV measurement applications as well as general inspection. Modular design allows you to interchange couplers and objective lenses to vary magnification, FOV, and working distance.

The new 4k SmartCam offers 4k resolution to a live monitor with integrated measurement tools and the ability to capture images to an SD Card, a USB flash drive, or connect directly to a PC via ethernet or WiFi for capture to a hard drive. 4K UHD has 4 times the resolution of 1080p HD. The 2160p standard provides 3840x2160 pixels for sharper images with greater detail.

Image is for illustrative purposes - ships with 4K HDMI SmartCam.

Includes:

  • Mounting adapter for SmartCam Systems
  • Ring Light Adapter For MZ7 Lens
  • Glass master for smart camera
  • 0.5x coupler for high resolution micro zoom lens
  • 26" 4k/UHD LED monitor with HDMI input

MZ7A Specifications

Micro Lens Zoom Range 0.7x - 4.5x
Magnification Range 4.7x - 1295.4x
Zoom Ratio 1:6.5
Field of View 91mm - 0.4mm
Working Distance 35mm - 302mm
Focus & Zoom Control Manual
Video Mount C-Mount
Camera Format 1/2"
Available coupler 0.5x, 0.67x, 1x, and 2x
Available objective lens 0.25x, 0.5x, 0.75x, and 2x

Stand Specifications

Total Weight 40 lbs
Dimensions of Base 10.25" x 11.25" x 0.7"
Horizontal Arm 20" Length; 0.8" Diameter
Vertical Post 15" Length; 1.47" Diameter
Mounting Dowel 5/8" Standard Diameter
Tip Over Weight 21 lb
Safety Collar Yes
Warranty 1 Year

Focus Mount Specifications

Hole Diameter 76mm - Standard Size
End Adapter 5/8" (15.875mm) - Standard Size
Focusing Travel Distance ±1"
Warranty 1 Year

4K HDMI SmartCam Specifications

Sensory Type CMOS
Sensor Optical Format 1/1.8"
Active Pixels 8.3M (3840 x 2160)
Pixel Size 2µm x 2µm
Active Sensor Area 7.68mm x 4.32mm
Shutter Electronic Rolling Shutter
Video Preview Resolution (HDMI) 3840 x 2160
Video Preview Framerate (HDMI) 60fps
Video Capture Resolution 3840 x 2160
Video Capture Framerate 50fps (SecureDigital)
30fps max (Ethernet, WI-FI)
Internal Video Capture Format MP4
Photo Capture Resolution 3840 x 2160
Internal Photo Capture JPG
Recording Media SecureDigital Card, USB Flash
Connectivity HDMI, Ethernet, WI-FI
Wi-Fi Standard 802.11ac 5GHz
Power 12VDC 1A

LED Ring Light Specifications

Luminosity/Brightness 2.2kfc
Color temperature 3500k
Power input 90-265VAC
Power output 22VDC
Inner diameter 2.3"
Power cord length 1.5M
Life 50,000h
Watt 6W
Number of LED's 60
Light Intensity Control Yes
Warranty 1 Year

MZ7A Optical Specifications

Objective Lens Video Couplers W.D.
0.5x 0.67x 1x 2x
Mag F.O.V. (mm) Mag F.O.V. (mm) Mag F.O.V. (mm) Mag F.O.V. (mm)
0.25x 6.1-39.3x 91.4-14.2 8.2-52.6x 68.2-10.6 12.2-78.6x 45.7-7.1 24.4-157.2x 22.9-3.6 302mm
0.5x 12.2-78.6x 45.7-7.1 16.4-105.3x 34.1-5.3 24.4-157.2x 22.8-3.6 48.9-314.3x 11.4-1.7 176mm
0.75x 18.3-117.9x 30.5-4.5 24.6-157.9x 22.7-3.5 36.7-235.7x 15.2-2.4 73.3-471.5x 7.6-1.2 117mm
1x 24.4-157.2x 22.8-3.6 32.8-210.6x 17.1-2.7 48.9-314.3x 11.4-1.8 97.8-628.7x 5.7-0.9 96mm
2x 48.9-314.3x 11.4-1.8 65.5-421.2x 8.5-1.3 97.8-628.7x 5.7-0.9 195.6-1257.3x 2.8-0.4 35mm

* Packaged Specifications: Mag. = Magnification, F.O.V. = Field of View, W.D. = Working Distance
