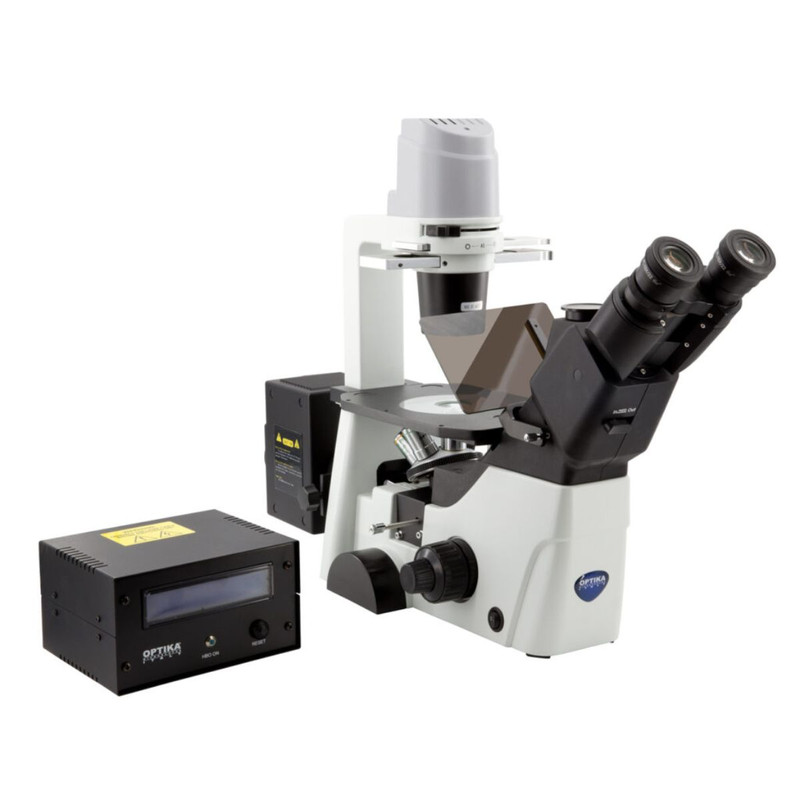

OPTIKA IM-300F Trinocular Inverted Fluorescence Microscope with Phase Objectives
OPTIKA
$14,853.00
Write a Review
OPTIKA
OPTIKA IM-300F Trinocular Inverted Fluorescence Microscope with Phase Objectives
- Trinocular head, inclined 45°
- 10x/22mm eyepieces
- 10x, 20x, 40x IOS LWD W-PLAN PH objectives
- LED illumination with variable control
- HBO Fluorescence attachment
- 10 Year limited warranty
Routine inverted fluorescence microscope for transmitted brightfield, phase contrast and fluorescence observations with IOS LWD W-PLAN objectives. The HBO fluorescence illuminator is combined with blue and green excitation filter set for the visualization of the following fluorochromes: Acridine Yellow, Acridine Orange, Auramine, DiO, DTAF, FITC, GFP, YFP, etc. (blue) plus Rhodamine, Texas Red and TRITC (green). Transmitted light through the exclusive X-LED8 to ensure great-looking, rich and high-quality specimen view.
Assembled in Italy
Standard filter sets:
Name: B (Blue)
Excitation filter (nm): 465-495
Dichroic mirror cut-off (nm): 505
Emission filter (nm): 515LP
Name: G (Green)
Excitation filter (nm): 527-553
Dichroic mirror cut-off (nm): 565
Emission filter (nm): 575LP
Product Specifications
| Observation mode | Brightfield, phase contrast, HBO fluorescence. |
| Head | Trinocular (2-position 100/0, 50/50), 45° inclined. |
| Interpupillary distance | Adjustable between 50 and 75 mm. |
| Dioptric adjustment | On the left eyepiece tube. |
| Eyepieces | WF10x/22 mm, high eye-point and with rubber cups. |
| Nosepiece | Quintuple revolving nosepiece, rotation on ball bearings. |
| Objectives | IOS LWD W-PLAN PH 10x/0.25 IOS LWD W-PLAN PH 20x/0.40 IOS LWD W-PLAN PH 40x/0.65 All with anti-fungus treatment. |
| Specimen stage | Fixed stage, 250×160 mm, with glass and metal stage inserts. |
| Focusing | Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. |
| Condenser | LWD pre-centered condenser, N.A. 0.30, W.D. 72 mm. With 4x/10x, 20x/40x phase contrast slider and brightfield. |
| Transmitted illumination | X-LED8 with white 8 W LED (6,300K) with brightness control. With aperture diaphragm. Multi-plug 100-240Vac/6Vdc external power supply |
| Epi-illumination and filter | HBO 100 W high pressure mercury lamp. 3-position filter holder; blue & green included. |
Product Resources
- Weight:
- 55.00 LBS
- Width:
- 24.00 (in)
- Height:
- 20.00 (in)
- Depth:
- 28.00 (in)
