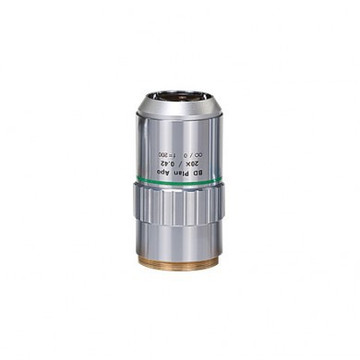

Mitutoyo BD Plan Apo SL 20x Objective for MF-U Measuring Microscopes (Brightfield / Darkfield)

Mitutoyo
SKU:
MIT378-840-7
$3,514.40
$3,820.00
(You save $305.60 )
Current Stock:
Adding to cart… The item has been added

The Mitutoyo 378 Series objectives have the world's longest working distance and an infinity correction optical system. These objectives provide flexible observation at high magnifications and independent correction of chromatic aberration.

  • The long working distance objectives provide excellent clearance between the lens surface and the workpiece surface in focus, making it possible to observe workpieces which are usually hard-to-focus because of awkward projections.
  • The metallurgical plan apochromatic (M Plan Apo) objective provides a flat, chromatic aberration-free image throughout the field of view, making it suitable for any type of microscope.
  • Specially designed objectives also are available with correction for near-infrared radiation, near-ultraviolet radiation, and ultraviolet radiation, or various thicknesses of LCD screen glasses.
  • The mounting screw threads of objectives are designed to conform to JIS B-7141-1988.
  • Super Long (SL) Working Distance
  • For MF-UC & MF-UD Models
  • Compatible observation method: Bright-field observation, dark-field observation, simple polarized observation, differential interference observation
  • Advantage: Dark-field observation is also supported while maintaining the performance of the M Plan Apo objective series.

Product Specifications

Magnification 20x
N.A. 0.28
W.D. 30.5mm
Focal distance 10mm
Resolving power 1.0μm
Focal depth 3.5μm
View field with ø24 eyepiece ø1.2mm
View field with CCD camera 0.24 x 0.32mm
Mass 350g

* View field with CCD camera is a view field when using Mitutoyo Vision Unit
